  • Thin-film lithium niobate bidirectional serrodyne optical frequency shifter

    Conceptual thin-film lithium niobate traveling-wave serrodyne frequency shifter
    Conceptual scientific illustration; not a microscopy image or measured result.

    A transparent engineering model for Thin-film lithium niobate bidirectional serrodyne optical frequency shifter

    Method estimate from assumed inputs. Not a measurement, foundry specification, or tape-out.

    Why this device matters

    The target audience for this device comprises precision metrology laboratories, quantum optics researchers, coherent FMCW LiDAR architects, and microwave-photonics systems engineers. In long-haul optical frequency transfer networks linking optical atomic clocks across hundreds of kilometers of optical fiber, acoustic and thermal fluctuations along the fiber link corrupt phase stability. Canceling this phase noise requires establishing an active phase compensation loop using an optical frequency shifter to introduce an intentional carrier offset, which enables the system to isolate the round-trip signal from parasitic Rayleigh backscattering. In quantum systems, addressing solid-state spin centers (such as nitrogen-vacancy or silicon-vacancy centers in diamond) requires continuous-wave laser frequencies to be rapidly shifted across gigahertz ranges to overcome emitter inhomogeneous broadening. Similarly, coherent FMCW LiDAR architectures rely on frequency-shifted local oscillators to eliminate zero-frequency homodyne blind spots and unambiguously resolve target velocity from Doppler shifts.

    State of the art

    Approach Demonstrated role Evidence used in this note Engineering limitation
    Bulk acousto-optic modulator Mature spatial frequency shifting Commercial and laboratory baseline discussed by Shao et al. Macroscopic optical alignment and RF power
    Integrated TFLN acousto-optic shifter Mode conversion near 3 GHz Measured device reported by Shao et al. (2020) Electromechanical conversion and mode-management complexity
    Broadband serrodyne phase modulation Spectral-purity transfer and optical-frequency control Experimental system reported by Barbiero et al. (2023) Suppression depends on drive-waveform fidelity
    Bidirectional LNOI serrodyne shifter Integrated bidirectional frequency transfer Measured device reported by Qiu et al. (2025) Requires an implementation-specific traveling-wave and spectral model

    The table is a literature comparison. It does not describe results from the present repository.

    What the model calculates

    The accepted build reports these assumed-input metrics:

    • ideal_conversion_efficiency: 0.9997840306979627
    • flyback_ssr_model: 30.45757490560675
    • flyback_ssr_model_F0p03_dB: 30.45757490560675
    • flyback_ssr_model_F0p10_dB: 20.0
    • amplitude_error_csr_trend: 53.84263608342229
    • vpi_length_scaling: 2.0
    • reverse_walkoff_trend: 5.82126910493308e-05

    These are method estimates, not measurements.

    Calculated result from assumed inputs
    Calculated result from assumed inputs. Calculated from the accepted model inputs.
    pockels_index: delta_n_e = -0.5 * n_e^3 * r_33 * E_z
    half_wave_voltage: V_pi = lambda * G / (n_e^3 * r_33 * Gamma * L)
    serrodyne_phase: phi(t) = pi * V(t) / V_pi with V_pp = 2 V_pi for a 2-pi reset
    flyback_ssr_bound: SSR_dB ≈ 20 * log10(T / t_f) = -20 * log10(F)
    walkoff_sinc: eta_mod(f) proportional to sinc(f * L * (n_mu – n_g) / c)

    The accepted package is an analytic Thin-film lithium niobate bidirectional serrodyne optical frequency shifter model. It implements linear Pockels phase ramp from a 2-Vpi sawtooth on traveling-wave electrodes; reverse-wave velocity mismatch with assumed inputs, then reports conversion efficiency, flyback-limited spurious suppression, amplitude-error carrier leakage, half-wave voltage scaling, and reverse-wave walk-off. Literature measurements cited below are baselines, not outputs of this repository.

    Reproduce the result

    Source: https://github.com/ShahramPhotonics/silicon-photonics-eda-portfolio/tree/ac13872c2b1bb13b673eadddd7c251af4e1febe1/52-tfln-bidirectional-serrodyne-ofs


    git clone https://github.com/ShahramPhotonics/silicon-photonics-eda-portfolio.git


    Limits

    • Assumed inputs. Not measured.
    • No FDTD mode solver and no HFSS/quasi-TEM extraction in this packet.
    • Qiu 2025 and Assumpcao 2024 metrics are literature baselines, not factory results.
    • lxt_pdk_gf is an optional later layout backend; film thickness is not pinned.
    • Photorefractive drift and wafer-scale Vpi statistics are unpublished here.
    • GHz SSR is electronics-limited; no amplifier model is included.
    • Portfolio item 04 (educational LNOI ring) is not a predecessor implementation of this topology.

    Primary sources

    The immutable code URL is https://github.com/ShahramPhotonics/silicon-photonics-eda-portfolio/tree/ac13872c2b1bb13b673eadddd7c251af4e1febe1/52-tfln-bidirectional-serrodyne-ofs.

    Read more PhotoBattery notes at https://photobattery.ca/blog/.

    Immutable source on GitHub

  • A transparent engineering model for a lateral Si/Ge/Si PIN photodiode

    Conceptual cutaway of a lateral silicon germanium silicon PIN waveguide photodiode
    Conceptual scientific illustration; not a microscopy image or measured result.

    A transparent engineering model for a lateral Si/Ge/Si PIN photodiode

    High-speed photodetectors are a practical bottleneck in silicon-photonic links: they turn modulated light into an electrical current that the receiver can amplify and decode. This new open-source project adds a lateral silicon/germanium/silicon PIN photodiode budget to the PhotoBattery device library.

    Method estimate from assumed inputs. The numerical results below are not measurements, foundry specifications, or reproductions of published devices.

    Why this device matters

    Germanium absorbs telecom-band light while remaining compatible with silicon-photonics integration. Virot and co-workers demonstrated a lateral double Si/Ge/Si heterojunction photodiode with contacts on silicon, reporting less than 10 nA dark current, more than 1.1 A/W responsivity, and more than 50 GHz bandwidth at -1 V. Lischke and co-workers later reported a different biconcave germanium-fin architecture reaching 265 GHz at 1 mA photocurrent. These are separate devices and their measurements must not be mixed into one synthetic preset.

    The broader silicon-photonics roadmap identifies communications as a mainstream demand and notes that high-speed germanium photodiodes are native to several foundry platforms. It also highlights the continuing need for better compact models and process design kits.

    Reference device Reported evidence Architecture Qualification for this article
    Virot et al. (2017) >1.1 A/W responsivity, >50 GHz bandwidth, <10 nA dark current at −1 V Lateral double Si/Ge/Si heterojunction Measured literature benchmark; not reproduced here
    Lischke et al. (2021) 265 GHz 3 dB bandwidth at 1 mA photocurrent Biconcave germanium fin Separate measured device; not mixed into the nominal preset
    This open model 1.023 A/W responsivity, 45.8 GHz combined bandwidth Generic lateral Si/Ge/Si engineering cartoon Reduced-order calculation from stated assumed inputs

    What the model calculates

    The package combines a generic multi-layer layout with a transparent reduced-order model. It calculates:

    • Beer-Lambert modal absorption from an explicitly assumed effective modal absorption coefficient.
    • Responsivity from absorbed fraction and an assumed collection efficiency.
    • A parallel-plate lateral-junction capacitance estimate plus a separate assumed parasitic capacitance.
    • Electron and hole transit responses from a one-dimensional Ramo-Shockley integration.
    • RC and combined small-signal frequency responses.
    • Optional ideal shot and Johnson noise when a measured or process-calibrated dark current is supplied.

    The nominal demonstration uses a 20 µm optical length, 0.6 µm carrier transit width, 15 fF assumed parasitic capacitance, 50 Ω assumed diode series resistance, and a 50 Ω instrument load. It produces an absorbed fraction of 0.909, responsivity of 1.023 A/W, parallel-plate capacitance of 2.36 fF, RC bandwidth of 91.7 GHz, transit bandwidth of 55.3 GHz, and combined bandwidth of 45.8 GHz. Because the operating bias is unspecified, the transit result is labeled a high-field ceiling.

    R = ηq × Aabs × q / (hν)

    Here, Aabs is the modeled absorbed fraction and ηq is the assumed collection efficiency. The equation exposes the assumptions rather than presenting the result as a measurement.

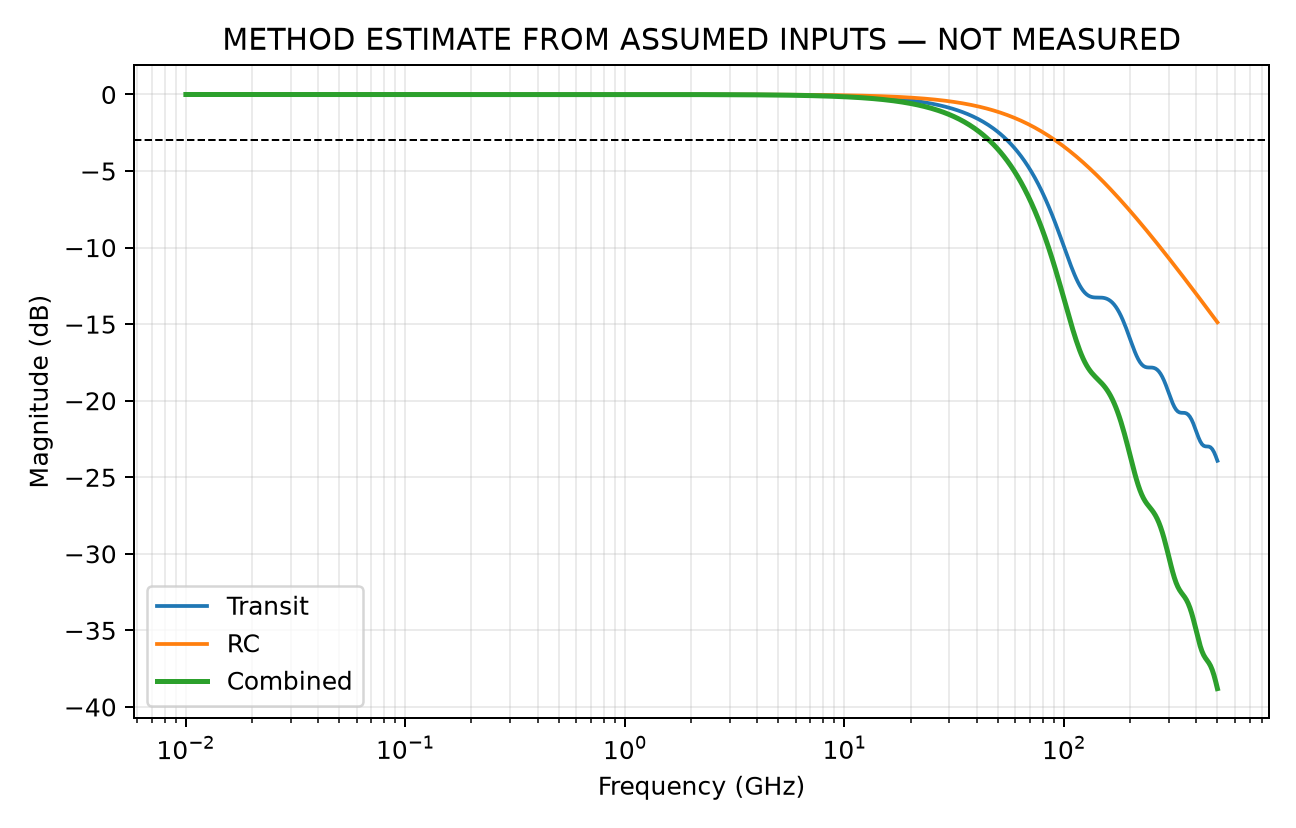

    Calculated transit, RC, and combined frequency responses
    Calculated transit, RC, and combined frequency responses. Calculated from the accepted model inputs.

    What the GDS represents

    The generated cell GE_PIN_LATERAL_CARTOON_VIROT_CLASS is a top-view engineering cartoon: optical guide, rectangular Ge region, separate silicon-side p/n regions, vias, metals, and labels. Its layer numbers are project-local visualization layers. It does not encode a foundry layer map, implant dose, Ge recess or seed, silicide enclosure, GSG pads, or sign-off design rules.

    The automated topology checks verify that the p-side and n-side metals remain separate and that required shapes are present. KLayout then writes and reads the GDS to verify round-trip integrity.

    Reproduce the result

    The complete source, tests, CSV data, plot, and generic GDS are available in the immutable open-source project release on GitHub.

    The visually verified two-page engineering note is available as a PDF.


    git clone https://github.com/ShahramPhotonics/silicon-photonics-eda-portfolio.git
    cd silicon-photonics-eda-portfolio/51-ge-pin-photodiode
    python -m venv .venv
    source .venv/bin/activate
    pip install -r requirements.txt
    python run_analysis.py --out results
    pytest -q tests


    The release passed 15 targeted tests and the portfolio-wide verifier for all 51 projects. Those checks cover analytic limits, charge conservation at midpoint and edge birth, frequency roll-off, capacitance scaling, resistance and velocity sensitivity, invalid inputs, metal topology, and KLayout round trip.

    Limits and the next validation step

    This is an educational engineering budget. It is not TCAD, a full-wave optical calculation, measured silicon, a PDK cell, or a tape-out-ready layout. The largest uncertainty is the assumed effective modal absorption coefficient and collection efficiency. The capacitance model omits fringing fields, mixed Si/Ge dielectric behavior, depletion-voltage dependence, pads, and package interconnects.

    For a real design, replace every assumed input with values from one internally consistent measured device or calibrated solver. Then compare the predicted responsivity and S-parameter bandwidth against that same device before changing geometry.

    Primary sources
